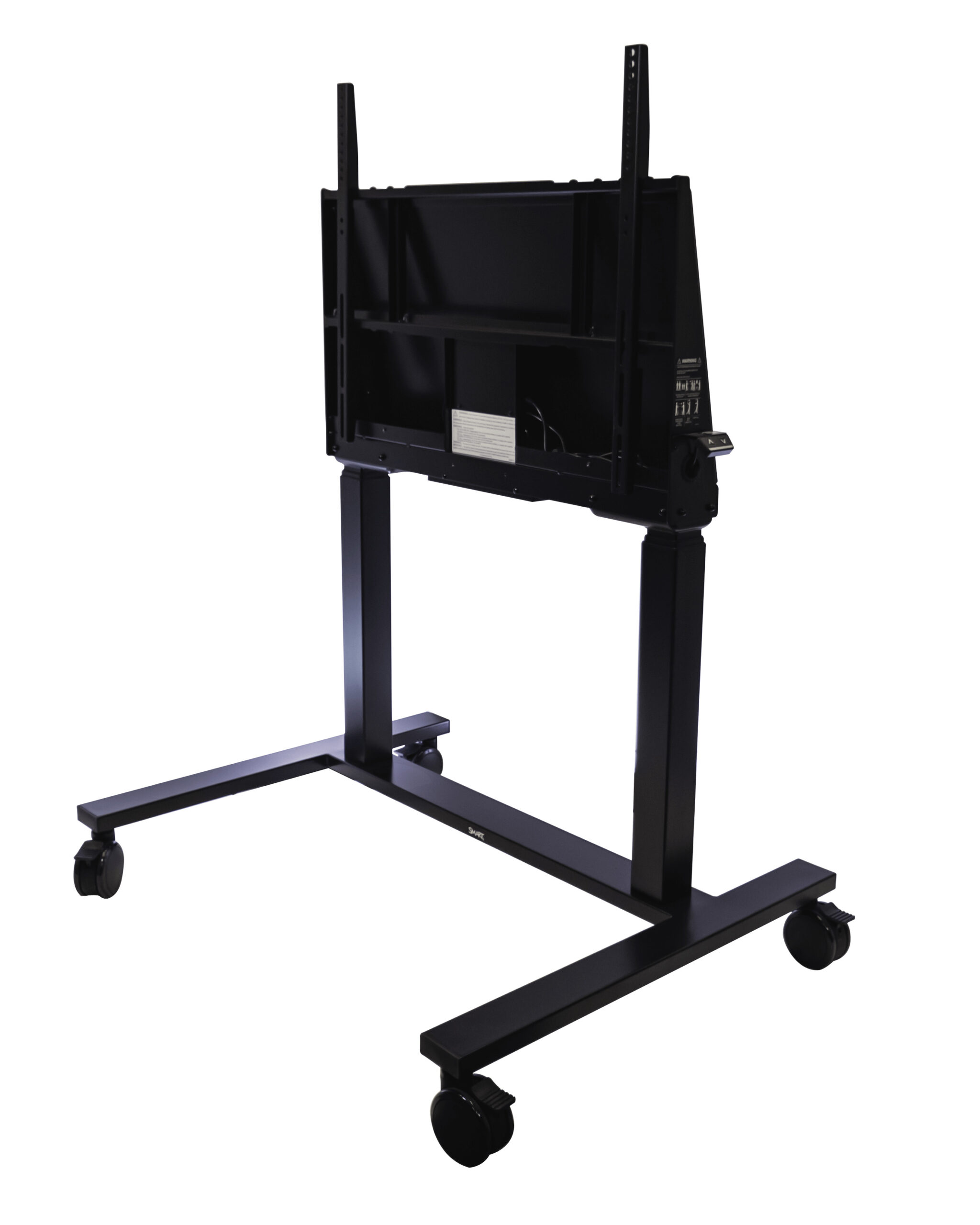

SMART Floor Stand Electric schwarz – FSE-520-B

Translated The electrically height-adjustable mobile SMART stand designed for our current range of SMART Board® interactive displays has a height adjustment range of 65 cm with a spring-back function when an obstacle is detected. With its robust steel frame, the stand can support displays with a diagonal of up to 218 cm and a total weight of 115 kg including accessories. You can easily roll the stand over smooth floors and secure it with the 10 cm lockable double castors in industrial quality and the stand has a TÜV-certified drive system and complies with the requirements of the Americans with Disabilities Act (ADA). In addition, the stand's various VESA mounting points allow for easy installation of the display and peripherals.



Hardware

Supported SMART Board displays

SMART Board RX series
SMART Board GX (V2)
SMART Board GX (V3)
SMART Board MX (V4)
SMART Board MX (V5)
SMART Board QX Pro series
SMART Board 6000S (V3)

Maximum display size
Supports displays up to 218 cm diagonal and 203 cm wide

Maximum display weight
100 kg

Maximum lifting capacity
115 kg



Height adjustment

range
65 cm

Maximum extended height
188 cm

Minimum height
122 cm



Components

Wheels
10 cm large, lockable double castors in industrial quality

Mounting
VESA® mounting template
400x400 500x400 600x400 700x400 800x400 800x600

All M8.
Unit: mm

Software
Android app for the SMART electric stand available for download*.



Mains

Supply voltage (North America)
120 V AC, 60 Hz

Supply voltage (Europe)
230V AC, 50 Hz

Standby mode < 0.7 W

Duty cycle 10 % (2 minutes operation under full load, 18 minutes idle time)



Operating requirements

Operating temperature
0-40°C

Storage temperature
-20-60°C

Air humidity
90% non-condensing



Supplied cables and accessories

Transmission cable
1

Multiple plug
1



Certification and compliance

Regulatory certification
FCC, ISED, UL (USA and Canada) area of use IA, CB, CE, LVD, EMCD, UKCA

Compliance with environmental protection requirements
RoHS, REACH, POP, packaging, U WEEE, TSCA, CONEG packaging, California Prop 65

Others
ADA



Purchase information

Order number: FSE-520-B
Electrically height-adjustable floor stand from SMART, FSE-520-B, UL-listed, non-locking, black

Order number:FSE-500-LS-BK
Laptop shelf, SMART stand, FSE-500-LS-BK, black

Order number: FSE-500-CM-BK
Camera mount, SMART stand, FSE-500-CM-B, black

Optional accessories
See smarttech.com/accessories



Guarantee

SMART warranty
5 years

Installation, dimensions and weights

Notes

• All dimensions with a tolerance of ±0.3 cm. All weights with a tolerance of ±0.9 kg.


• The product is delivered upright.

FSE-510-W

Weight of the stand
39 kg

Dimensions of the shipping box
114cm×85cm×18cm

Shipping weight
45 kg

Dimensions of the storage cabinet
75cm×50cm×18.1cm SmartAccessories
