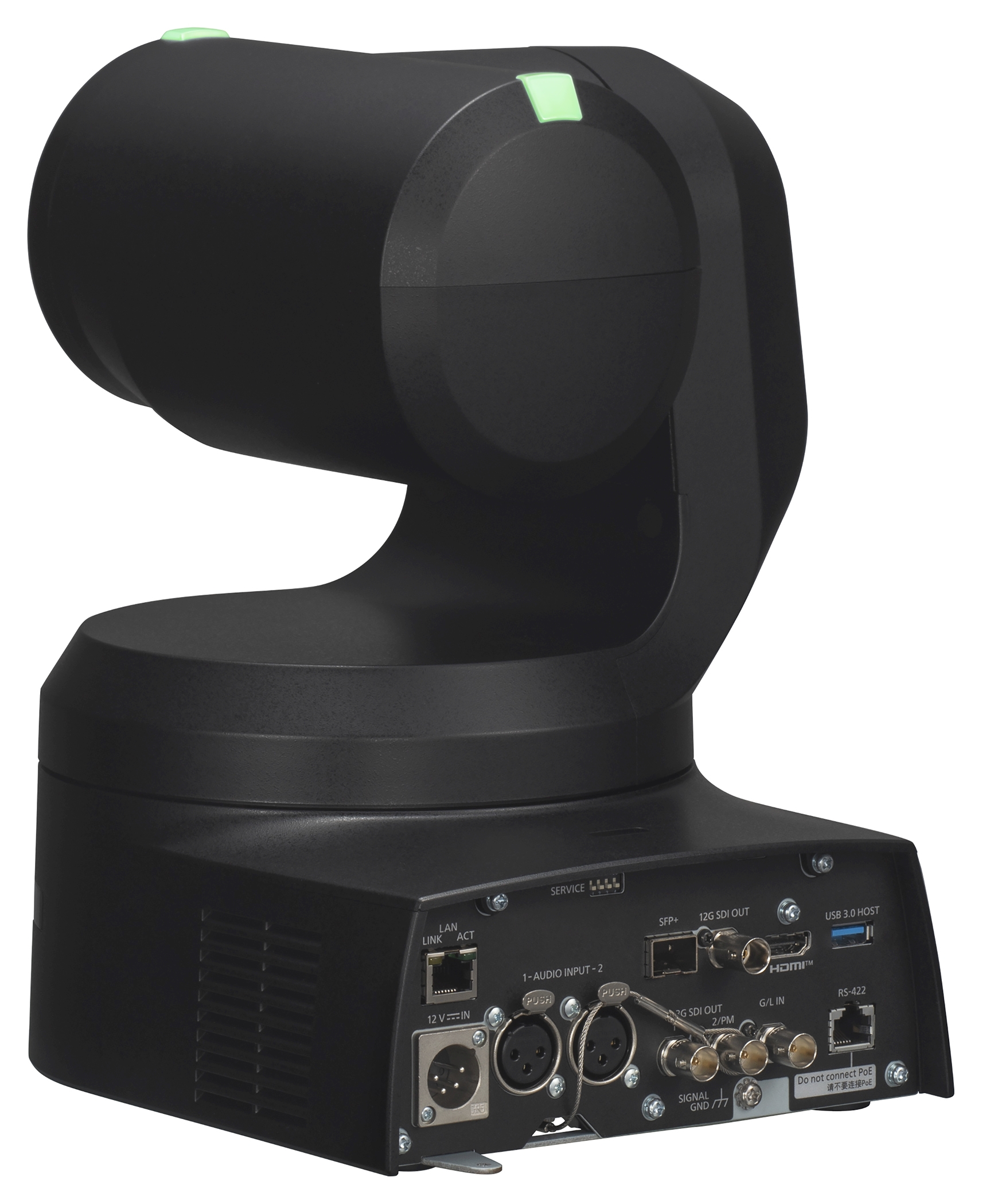

Panasonic AW-UE160W

The Panasonic AW-UE160W is a 4K pan/tilt camera with a highly sensitive 1" MOS sensor. The PTZ camera offers a high sensitivity of F14/2000 lx, equivalent to a studio camera. Noise reduction and improved image quality are realized by the newly developed image processing engine, which is also used in the LUMIX. By combining various functions, including the PDAF (Phase Detection Autofocus) function, a new function in the PTZ camera that enables high-speed focusing on moving subjects, the camera can produce high-quality video in all kinds of situations, such as shooting in dark places and shooting moving subjects. In addition, the AW-UE160 has a 20x zoom, an optical low-pass filter that significantly reduces moiré when shooting with LED/LCD panels, as well as integrated optical and electrical image stabilization.

The 4K output can be output via the 12G-SDI or HDMI port, via the optional AW-SFU60 software license, the Panasonic AW-UE160 PTZ camera can also output in SMPTE ST2110 standard via the SFP+ output. Support for mobile 5G routers (USB tethering compatible) to transmit 4K video data wirelessly from anywhere. High image quality with low latency and high bandwidth is provided by the integrated NDI function and NDI|HX. This allows videos to be transmitted in real time in high quality. SRT as a video transmission protocol with high security and suitability for unstable network environments, as well as RTMP and RTMPS for a direct upload of videos to live streaming services such as YouTube Live, Facebook Live from the camera are also standard. The camera can be controlled via the PTZ Control Center using a computer or optional control panels. The Panasonic AW-UE160 can be supplied with power either via DC 12 V or via an Ethernet cable via Poe+.

• 1" 4K MOS sensor


• Highly sensitive sensor F11/2000 lx (Normal), F14/2000 lx (High Sensitive)


• 20x optical zoom


• Optical low-pass filter significantly reduces moiré when shooting with LED/LCD panels


• 75.1° horizontal viewing angle


• 4K video format up to 2160p60


• FullHD video format up to 1080p120


• NDI / NDI|HX as standard for high-quality video transmissions with low latency


• Auto focus with phase detection AF + contrast AF


• Professional video outputs: 12G-SDI, two 3G-SDI, HDMI, IP and SFP+


• High-speed output (HD, 2x)


• integrated O.I.S. + E.I.S. image stabilization


• Cropping function


• Support for Free-D


• Support for SRT


• Support for SMPTE ST 2110 via optional AW-SFU60 license


• Two XLR connections


• Power supply via DC 12 V or PoE++
